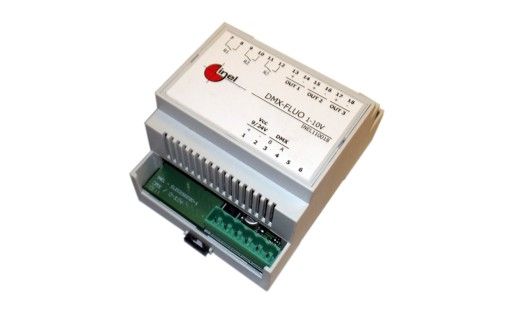

Servicions y Aplicaciones INEL has several DMX modules for control of lighting, in particular, this device lets you control the brightness control in electronic ballasts with input 1 – 10v with a bus connection to DMX.
The module features three independent channels of control, in addition, each channel includes a relay contact that can be used to disconnect the power supply 220v ballasts.
Channel assignment and DMX termination (if required) are fitted by a dip-switch located inside the module, to access it has to lift the top cover. Each channel in turn acts on the associated relay so that when receiving a DMX value of less than 10 turns off the relay contact.
FEATURES
- Standar DMX protocol receiver.
- Power supply from 9 up to 30v DC.
- 3 Outputs 1-10v up to 300mA to channel.
- 3 Relay contact 250v/16A.
- Encapsulated module-din rail 70mm.
