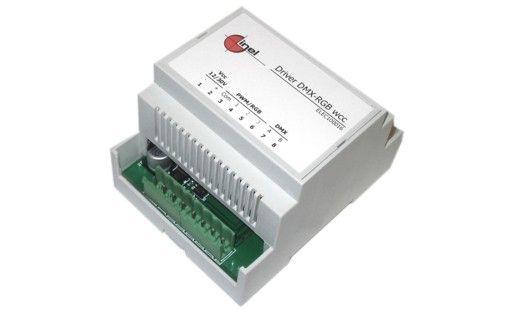

Servicios y Aplicaciones INEL has a large variety of products related to the DMX protocol, specifically, the device is a receiver and driver for LEDs incorporating the protocol and has 3 DMX channels can be selected using a dip-switch on the inside of the device.
It is specifically designed to handle systems with RGB color changing LED strips High Luminosity.
This device also has 5 programs to establish an autonomous mode of operation (without DMX controller), 4 programs to fixed colors (red, green, blue and white) and an automatic sequential color change passing through the full range of color that may arise in the combination of the LEDs.
FEATURES
- Standar DMX protocol receiver.
- Power supply (logic electronic) from 12 up to 30v DC.
- Power supply (leds strips) up to 80v DC.
- PWM outputs up 75w/channel with only max power 45w/channel or separate power 75w/channel.
- Stand-alone mode or color change fixed color capability.
- Encapsulated module-din rail 70mm.
