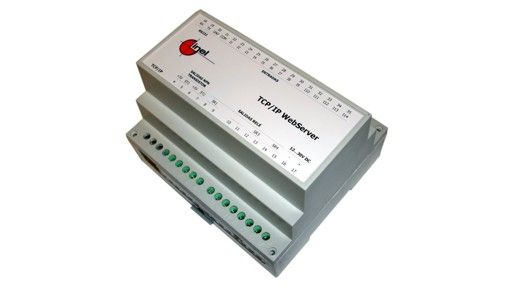

The device is a driver of inputs and outputs for remote monitoring over TCP / UDP. With this module you can monitor 14 digital inputs opto-isolated control 4 relay outputs with internal NA and 2 TTL outputs NPN.
The device also has a non-volatile memory that stores the configuration data.
FEATURESS
- Power supply 9 to 30v DC 300mA (máx).
- 14 opto-isolated inputs 24v DC.
- 4 outputs for internal relay contact NO (5A 250v AC) and (5A 30v DC).
- 2 Outputs TTL NPN up to 100mA.
- Ethernet port RJ45 10Mhz.
- Serial port RS232.
- Encapsulated module din rail-105mm.
